Single-turn absolute rotary encoder

Your current location:Home > Product > Absolute encoder > Single-turn absolute rotary encoder

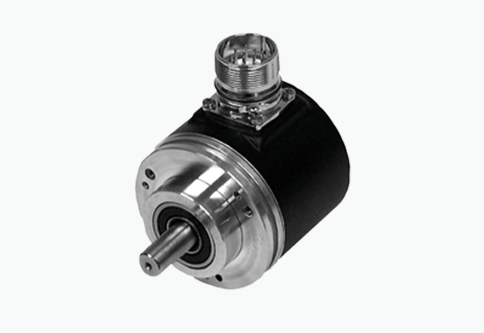

Single-turn absolute encoder AVS58N-011YYRYGN-0014

  • description

  · YY: Connector 9416L with special assignment

  · Y: Power supply 5V DC

  · 14-bit, single

  · Hardware encoder

  · Data transfer speeds up to 2 MBaud

  · Optically isolated RS 422 interface

  · Clamping flange

  Datasheet excerpt: Technical parameters of AVS58N-011YYRYGN-0014

Functional safety related parameters

MTTFd

170 a

Mission time (TM)

20 a

L10

1,9 E+11 at 6000 rpm and 20/40 N axial/radial shaft load

Diagnostic coverage (DC)

0 %

Electrical specifications

Operating Voltage

5 V DC

No-load current

Up to 120 mA

Linearity

± 2 LSB at 14 bits, ± 1 LSB at 13 bits, ± 0.5 LSB at 12 bits

Output code

Gray code

Code course

Clockwise decrement (clockwise rotation, code course decrement)

Interface

Interface Type

SSI

Monostable trigger time

20 ± 10 μs

Resolution

Single circle

14 Bit

Overall solution

14 Bit

Transmission rate

0,1 ... 2 MBit/s

Standards compliant

RS 422

Connection

Connector

Type 9416L (M23), 12-pin

Standards compliant

Protection level

DIN EN 60529, IP65

Climate test

DIN EN 60068-2-3, no condensation

Emission interference

EN 61000-6-4:2007

Immunity

EN 61000-6-2:2005

Impact resistance

DIN EN 60068-2-27, 100 g, 3 ms

Vibration resistance

DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz

Environmental conditions

Operating temperature

-40 ... 85 °C (-40 ... 185 °F)

storage temperature

-40 ... 85 °C (-40 ... 185 °F)

Mechanical specifications

Material

Housing: aluminum with powder coating
Flange: Aluminum
Shaft: stainless steel

Quality

Approximately 460 g

spinning speed

12000 min -1

Moment of inertia

50 gcm2

Starting torque

< 5 Ncm

Shaft load

Axial

40 N

Radial

110 N

If you want to quote or further information on this product, please fill out the following form.
