Single-turn absolute rotary encoder

Your current location:Home > Product > Absolute encoder > Single-turn absolute rotary encoder

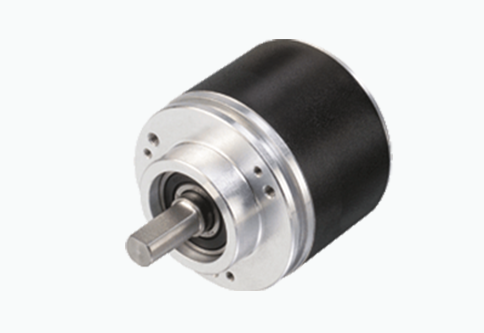

Single-turn absolute encoder AVS58W-011BEAHGN-0012

  • description

  · 12-bit, single

  · Hardware encoder

  · Data transfer speeds up to 2 MBaud

  · Optically isolated RS 422 interface

  · Clamping flange

  · Degree of protection IP66

  Datasheet excerpt: Technical parameters of AVS58W-011BEAHGN-0012

Functional safety related parameters

MTTFd

170 a

Mission time (TM)

20 a

L10

1,9 E+11 at 6000 rpm and 20/40 N axial/radial shaft load

Diagnostic coverage (DC)

0 %

Electrical specifications

Operating Voltage

10 ... 30 V DC

No-load current

Up to 180 mA

Linearity

±0.5 LSB (12-bit)

Output code

Gray code

Code course

Clockwise decrement (clockwise rotation, code course decrement)

Interface

Interface Type

SSI

Monostable trigger time

20 ± 10 μs

Resolution

Single circle

12 Bit

Overall solution

12 Bit

Transmission rate

0,1 ... 2 MBit/s

Voltage drop

UB- 2,5 V

Standards compliant

RS 422

Input 1

Input type

Select the counting direction (clockwise / counterclockwise)

Signal voltage

High

10 ... 30 V

Low

0 ... 2 V

Input Current

< 6 mA

On delay

< 0,001 ms

Connection

Connector

8-pin M12 x 1 connector

Standards compliant

Protection level

DIN EN 60529, IP66

Climate test

DIN EN 60068-2-3, no condensation

Emission interference

EN 61000-6-4:2007

Immunity

EN 61000-6-2:2005

Impact resistance

DIN EN 60068-2-27, 100 g, 3 ms

Vibration resistance

DIN EN 60068-2-6, 20 g, 10 ... 2000 Hz

Certification and certificate

UL certification

cULus certified, general purpose, class 2 power supply

Environmental conditions

Operating temperature

-40 ... 85 °C (-40 ... 185 °F)

storage temperature

-40 ... 85 °C (-40 ... 185 °F)

Mechanical specifications

Material

Housing: aluminum flange with powder coating: aluminum shaft: stainless steel

Quality

Approximately 460 g

spinning speed

Maximum 3000 min -1

Moment of inertia

50 gcm2

Starting torque

< 5 Ncm

Shaft load

Axial

40 N

Radial

110 N
