Single-turn absolute rotary encoder

Your current location:Home > Product > Absolute encoder > Single-turn absolute rotary encoder

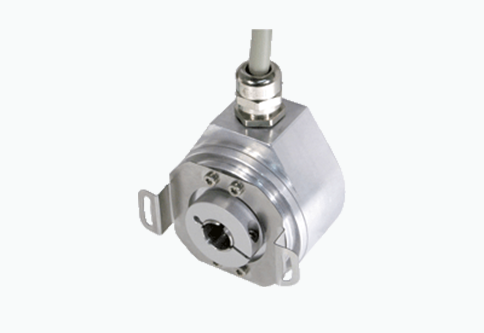

Single-turn absolute encoder AHS58-H

  • description

  · Industry standard housing ∅58 mm

  · 16-bit, single

  · Hardware encoder

  · Data transfer speeds up to 2 MBaud

  · Optically isolated RS 422 interface

  · Hollow shaft

  Datasheet excerpt: Technical parameters of AHS58-H

General specification

Detection type

Photoelectric sampling

Equipment type

Single-turn absolute encoder

Electrical specifications

Operating Voltage

4,5 ... 30 V DC

No-load current

Up to 180 mA

Time delay before availability

< 250 ms

Linearity

± 2 LSB at 16 bits, ± 1 LSB at 13 bits, ± 0.5 LSB at 12 bits

Output code

Gray code, binary code

Code course

Clockwise decrement (clockwise rotation, code course decrement)

Interface

Interface Type

SSI

Monostable trigger time

20 ± 10 μs

Resolution

Single circle

Up to 16 Bit

Overall solution

Up to 16 Bit

Transmission rate

0,1 ... 2 MBit/s

Voltage drop

UB- 2,5 V

Standards compliant

RS 422

Input 1

Input type

Select the counting direction (clockwise / counterclockwise)

Signal voltage

High

4,5 ... 30 V

Low

0 ... 2 V

Input Current

< 6 mA

On delay

< 10 ms

Connection

Connector

Type 9416 (M23), 12-pin, type 9416L (M23), 12-pin

Cable

∅7 mm,6 x 2 x 0.14 mm2, 1 m

Standards compliant

Protection level

DIN EN 60529, IP65

Climate test

DIN EN 60068-2-3, no condensation

Emission interference

EN 61000-6-4:2007

Immunity

EN 61000-6-2:2005

Impact resistance

DIN EN 60068-2-27, 100 g, 6 ms

Vibration resistance

DIN EN 60068-2-6, 20 g, 10 ... 2000 Hz

Certification and certificate

UL certification

cULus certified, general purpose, class 2 power supply

Environmental conditions

Operating temperature

-40 ... 85 °C (-40 ... 185 °F)

storage temperature

-40 ... 85 °C (-40 ... 185 °F)

Mechanical specifications

Material

Combination 1

Housing: Aluminum Flange: Aluminum Shaft: Stainless steel

Quality

Approximately 300 g (combination 1)

spinning speed

Maximum 3000 min -1

Moment of inertia

30 gcm2

Starting torque

< 3 Ncm

Shaft load

Angle offset

± 0,9 °

Axial offset

Static: ±0.3 mm, dynamic: ±0.1 mm

Radial offset

Static: ±0.5 mm, dynamic: ±0.2 mm
