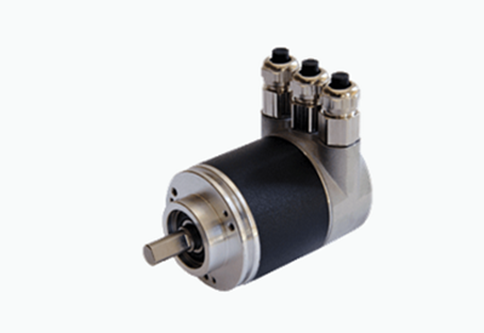

Multi-turn absolute encoder DVM58N-011AGR0BY-1213

  • description

  · Industry standard housing ∅58 mm

  · 25 digits, more than

  · DeviceNet interface for galvanic isolation

  · Clamping flange

  · Auto save function

  Datasheet excerpt: Technical parameters of DVM58N-011AGR0BY-1213

General specification

Detection type

Photoelectric sampling

Equipment type

Multi-turn absolute encoder

Functional safety related parameters

MTTFd

480 a at 40 °C

Mission time (TM)

20 a

L10

4,3 E-10 at 6000 rpm and 20/40 N axial/radial shaft load

Diagnostic coverage (DC)

0 %

Electrical specifications

Operating Voltage

10 ... 30 V DC

No-load current

Maximum 230 mA at 10 V DC Maximum 100 mA at 24 V DC

Linearity

± 2 LSB at 16 bits, ± 1 LSB at 13 bits, ± 0.5 LSB at 12 bits

Output code

Binary code

Code course

Clockwise increment (clockwise rotation, code course increment) clockwise decrement (clockwise rotation, code course decrement)

Interface

Interface Type

DeviceNet

Resolution

Single circle

13 Bit

More

12 Bit

Overall solution

25 Bit

Transmission rate

Max 0,5 MBit/s

Connection

Terminal box

In the detachable housing cover

Standards compliant

Protection level

DIN EN 60529, IP65

Climate test

DIN EN 60068-2-30, no condensation

Emission interference

DIN EN 61000-6-4

Immunity

DIN EN 61000-6-2

Impact resistance

DIN EN 60068-2-27, 100 g, 6 ms

Vibration resistance

DIN EN 60068-2-6, 20 g, 10 ... 2000 Hz

Certification and certificate

UL certification

cULus certified, general purpose, class 2 power supply

Environmental conditions

Operating temperature

-40 ... 85 °C (-40 ... 185 °F)

storage temperature

-40 ... 85 °C (-40 ... 185 °F)

Mechanical specifications

Material

Housing: aluminum flange with powder coating: aluminum shaft: stainless steel

Quality

About 700 g

spinning speed

12000 min -1

Moment of inertia

30 gcm2

Starting torque

≤ 3 Ncm

Shaft load

Axial

40 N

Radial

110 N
