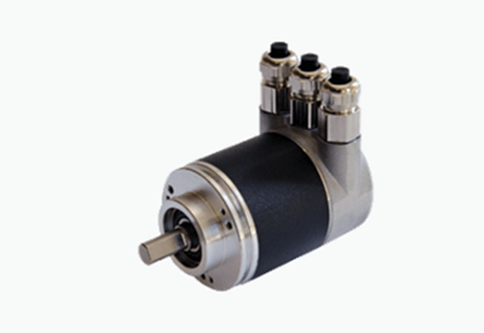

Multi-turn absolute encoder PVM58N-YY1AGR0BN-1213

  • description

  · Industry standard housing ∅58 mm

  · PROFIBUS interface

  · 25 digits, more than

  · Speed transmission

  · Wider extensions

  · Programmable limit switch

  · Debug mode

  · Clamping flange

  Datasheet excerpt: Technical parameters of PVM58N-YY1AGR0BN-1213

General specification

Detection type

Photoelectric sampling

Equipment type

Multi-turn absolute encoder

Functional safety related parameters

MTTFd

70 a

Mission time (TM)

20 a

L10

1,9 E+11 at 6000 rpm and 20/40 N axial/radial shaft load

Diagnostic coverage (DC)

0 %

Electrical specifications

Operating Voltage

10 ... 30 V DC

No-load current

Maximum 230 mA at 10 V DC Maximum 100 mA at 24 V DC

Power consumption

2,5 W maximum

Time delay before availability

< 1000 ms

Linearity

±1 LSB (at 13-bit), ±0.5 LSB (at 12-bit)

Output code

Binary code

Code course

Programmable, clockwise increment (clockwise rotation, code course increment) clockwise decrement (clockwise rotation, code course decrement)

Interface

Interface Type

PROFIBUS

Resolution

Single circle

13 Bit

More

12 Bit

Overall solution

25 Bit

Transmission rate

0,0096 ... 12 MBit/s

Standards compliant

PNO profile 3.062, RS-485

Connection

Terminal box

In the detachable housing cover

Standards compliant

Protection level

DIN EN 60529, IP65

Climate test

DIN EN 60068-2-30, no condensation

Emission interference

EN 61000-6-4:2007

Immunity

EN 61000-6-2:2005

Impact resistance

DIN EN 60068-2-27, 100 g, 6 ms

Vibration resistance

DIN EN 60068-2-6, 10 g, 10 ... 1000 Hz

Certification and certificate

UL certification

cULus certified, general purpose, class 2 power supply

Environmental conditions

Operating temperature

-40 ... 85 °C (-40 ... 185 °F)

storage temperature

-40 ... 85 °C (-40 ... 185 °F)

Mechanical specifications

Material

Housing: aluminum flange with powder coating: aluminum shaft: stainless steel

Quality

Approximately 600 g

spinning speed

12000 min -1

Moment of inertia

30 gcm2

Starting torque

≤ 3 Ncm (model without shaft seal)

Shaft load

Axial

40 N

Radial

110 N
